Abosn best quality high density polyethylene ground protection mat
light duty mat
quick mat
polyethylene mat
Product Details
Production description：
Our Light duty ground protection mats are perfect for allowing access and gaining traction to construction sites for rubber tracked and tyred vehicles from cars, vans, JCB, cranes, HGVs up to 80 tons (static load). Also they are ideal for ground protection and pedestrian foot paths over soft or sensitive ground, sand, mud, turf, marshy areas at any event.
Feature and Benifits：
|
Series No. |
Size (mm) |
Thickness with texture(mm) |
Unit weight (KGS) |
Effective Surface Area |
color |
|
XE01 |
2400*1200*12.7 |
22.7 |
40 |
2.88 |
customized |
|
XE02 |
2400*1200*12.7 |
22.7 |
42 |
2.98 |
customized |
|
XE04 |
2000*1000*10 |
12 |
22.6 |
2.00 |
customized |
|
XE05 |
2900*1100*12.7 |
22.7 |
45 |
3.20 |
customized |
Loading container and calculation：
|
Series No. |
Size (mm) |
weight |
20ft container |
40ft container |
MOQ |
|
XE01 |
2400*1200*12.7 |
40 kgs |
320pcs |
580pcs |
50pcs |
|
XE02 |
2400*1200*12.7 |
42 kgs |
300pcs |
550pcs |
50pcs
|
|
XE04 |
2000*1000*10 |
22.6 kgs |
590pcs |
1150pcs |
50pcs
|
|
XE05 |
2900*1100*12.7 |
45 kgs |
352pcs |
580pcs |
50pcs
|
Quick mat material：
|
|
|
|
|
|
Factor |
virgin HDPE |
Resistance to Ultra-violet |
Poor |
|
Tensile Strength(MPa) |
22 |
Radiation resistance |
Fair |
|
Notched Impacted Strength Kj/m2 |
No break |
Dielectric constant@1MHz |
2.3-2.4 |
|
Elongation at break (%) |
＞100% |
Dielectric strength(KV/ mm) |
22 |
|
Acids-concentrated |
Good--Fair |
Dissipation Factor@1MHz |
1-10*10 |
|
Acids-dilute |
Good |
Surface resistivity(Ohm/sq) |
10 |
|
Aromatic hydrocarbons |
Fair |
Volume resistivity(Ohm-cm) |
10-10 |
|
Greases and Oils |
Good-Fair |
Water absorption-over 24 hours (%)
|
＜0.01
|
|
Halogenated Hydrocarbons |
Fair-Poor |
Density(g/cm）
|
0.93-0.97
|
|
Halogens |
Fair-Poor |
Alkalis
|
Good
|
|
Ketones |
Good-Fair |
Alcohols
|
Good
|

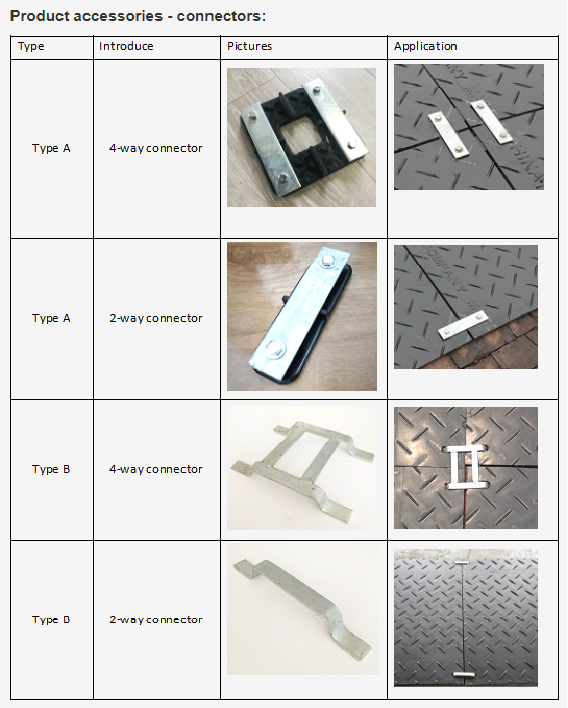

Connector：

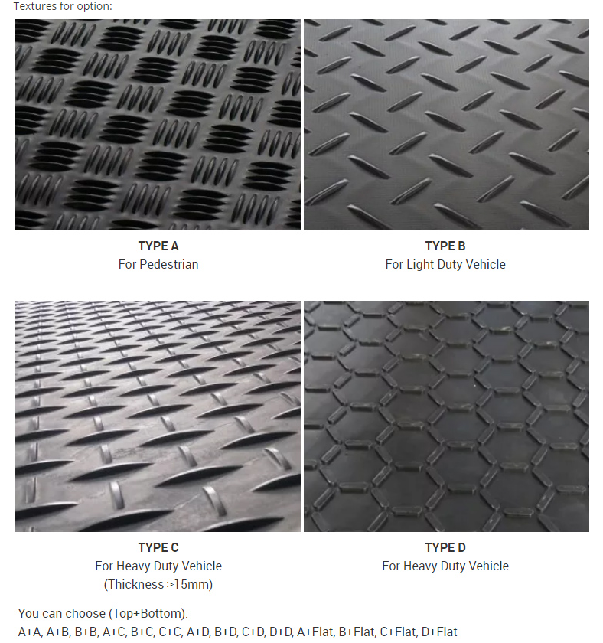

Textures for option：
Load capacity：
|
Thickness（mm） |
Load Capacity（ton） |
|
10 |
50 |
|
12.7 |
60 |
|
15 |
80 |
|
18 |
90 |
|
20 |
100 |
|
25 |
120 |
|
30 |
140 |
|
Thickness excludes height of texture |
|
Certificate：
