Product Details

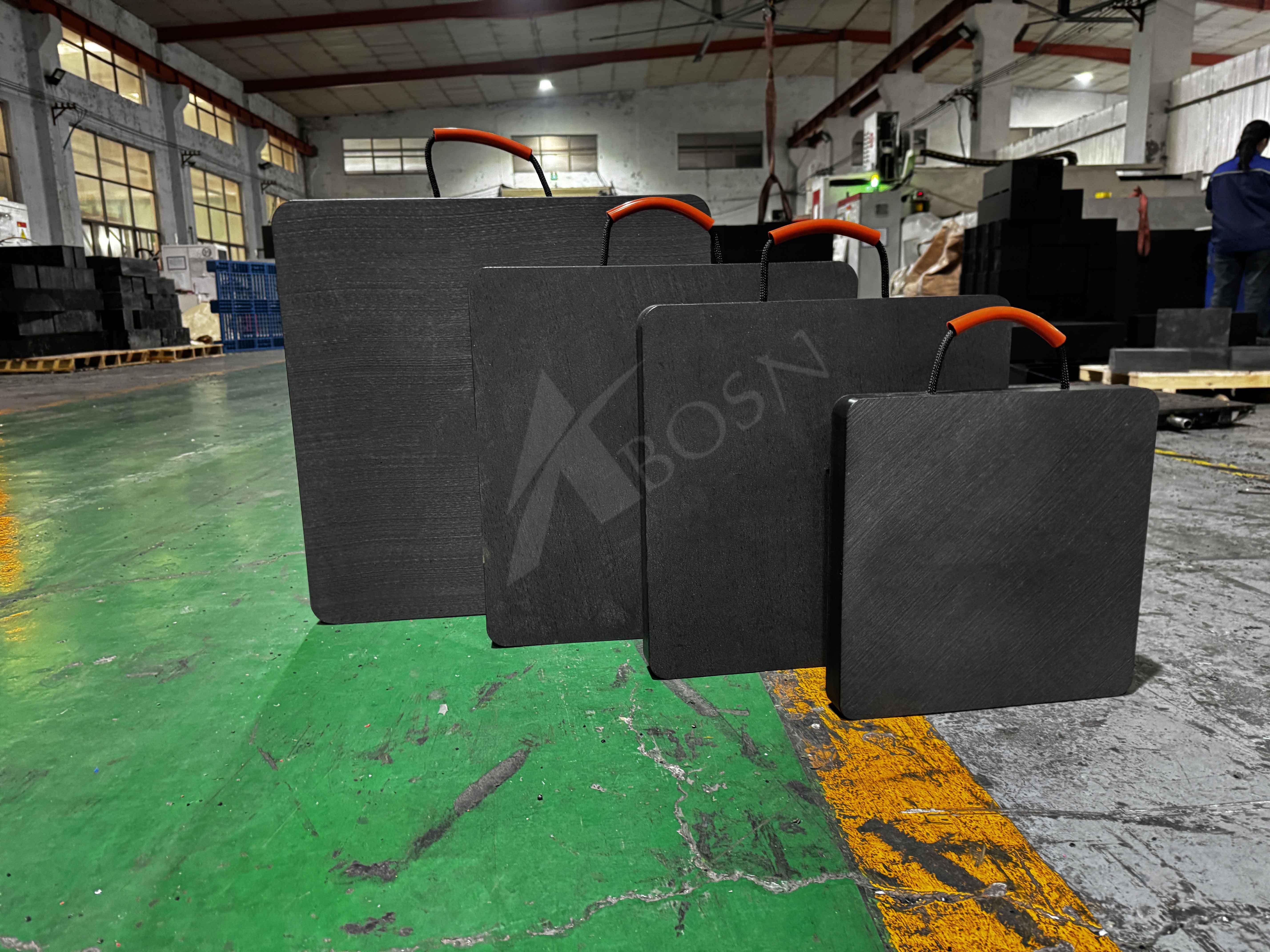

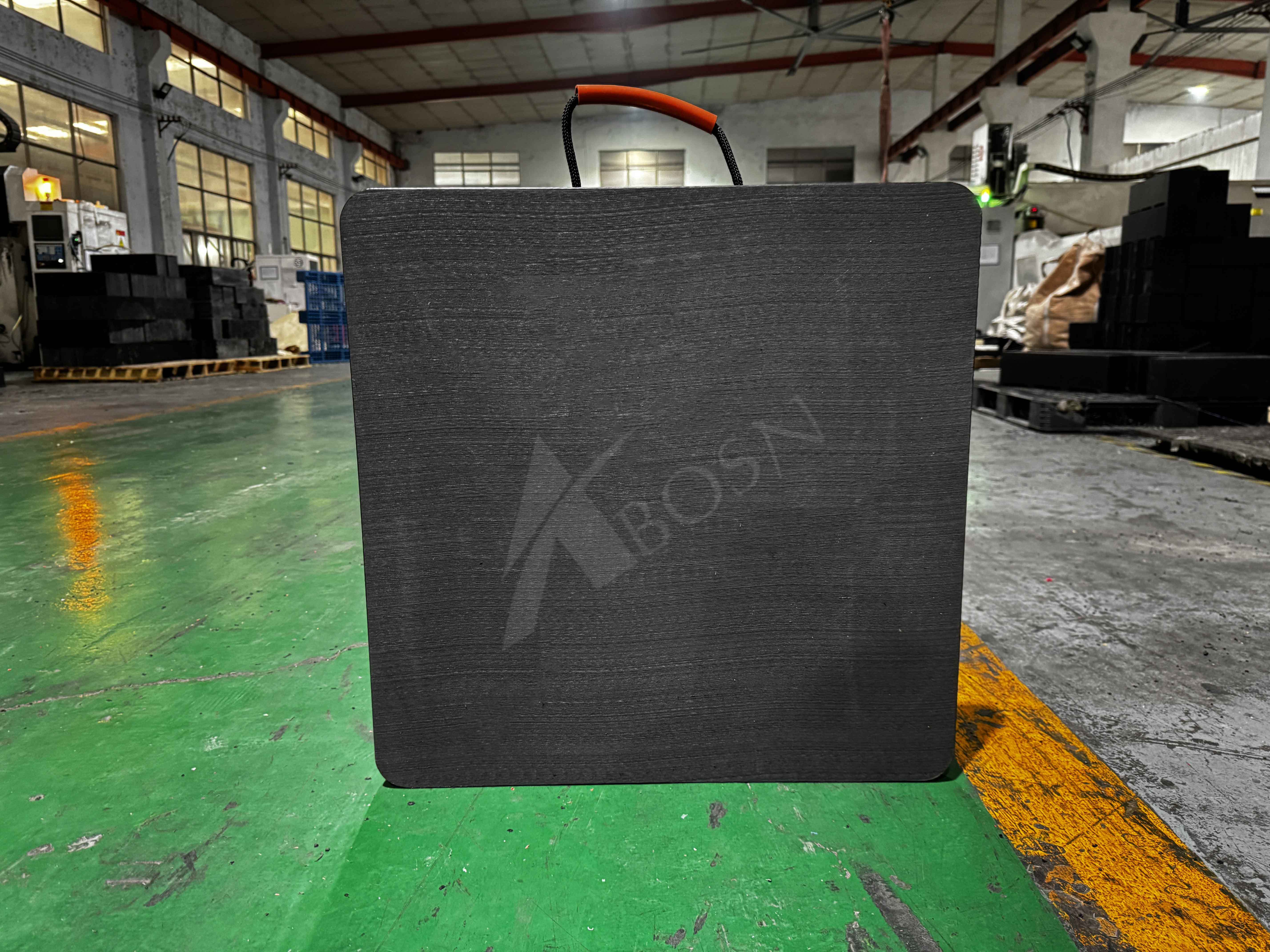

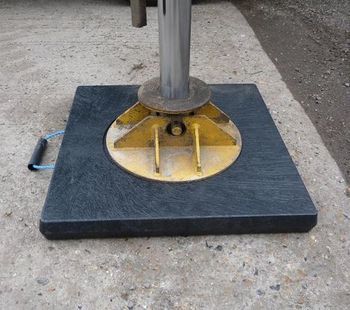

450×450×25mm Square Shape Jack Stabilizer Pad
PE (Polyethylene) outrigger pads offer several advantages over traditional outrigger pad materials like wood, steel, or aluminum:
1. **Lightweight**: PE outrigger pads are lightweight compared to materials like steel or aluminum, making them easier to handle, transport, and install. This reduces the physical strain on workers and simplifies logistics.
2. **High Strength-to-Weight Ratio**: Despite being lightweight, PE outrigger pads have a high strength-to-weight ratio, meaning they can support heavy loads without deformation or failure. This ensures stable support for equipment such as cranes, aerial lifts, and concrete pumps.
3. **Durable**: PE outrigger pads are highly durable and resistant to impact, abrasion, and environmental factors such as moisture, chemicals, and UV radiation. They maintain their structural integrity even under heavy loads and harsh conditions, ensuring long-term performance and reliability.
Load Capacity
Thickness（inch） | Pad size(inch) | Part Number | 45° Load | Vertical Load | Pad Weight |
1”Square | 18×18 | X1T1818 | 14 tonnes | 25 tonnes | 5.00kgs |
1”rectangle | 20×24 | X1T2024 | 16 tonnes | 27 tonnes | 7.63kgs |
1”Square | 24×24 | X1T2424 | 16 tonnes | 34 tonnes | 9.15kgs |
1”Square | 30×30 | X1T3030 | 18 tonnes | 36 tonnes | 14.3kgs |
1”Square | 36×36 | X1T3636 | 19 tonnes | 42 tonnes | 20.6kgs |
1”Square | 48×48 | X1T4848 | 22.5 tonnes | 59 tonnes | 36.62kgs |
1”Round | 30”Dia | X1TR30 | 12 tonnes | 28 tonnes | 11.23kgs |
1”Round | 36”Dia | X1TR36 | 15 tonnes | 32 tonnes | 16.16kgs |
1”Round | 48”Dia | X1TR48 | 18 tonnes | 45 tonnes | 28.75kgs |
|
|
|
|
|
|
1-2/1” Square | 18×18 | X1.5T1818 | 14 tonnes | 25 tonnes | 7.73kgs |
1-2/1” Square | 24×24 | X1.5T2024 | 16 tonnes | 27 tonnes | 13.73kgs |
1-2/1” Square | 30×30 | X1.5T3030 | 19 tonnes | 37 tonnes | 21.46kgs |
1-2/1” Square | 36×36 | X1.5T3636 | 20 tonnes | 43 tonnes | 31.00kgs |
1-2/1” Square | 48×48 | X1.5T4848 | 23 tonnes | 59 tonnes | 55.00kgs |
1-2/1” Round | 30”Dia | X.1.5TR30 | 14 tonnes | 28 tonnes | 16.85kgs |
1-2/1” Round | 36”Dia | X1.5TR36 | 15 tonnes | 32 tonnes | 24.24kgs |
1-2/1” Round | 48”Dia | X1.5TR48 | 18 tonnes | 45 tonnes | 43.13kgs |
|
|
|
|
|
|
2”Square | 18×18 | X2T1818 | 14 tonnes | 26 tonnes | 10.30kgs |
2”rectangle | 20×24 | X2T2024 | 18 tonnes | 28 tonnes | 15.26kgs |
2”Square | 24×24 | X2T2424 | 18 tonnes | 28 tonnes | 18.31kgs |
2”Square | 30×30 | X2T3030 | 19.5 tonnes | 38 tonnes | 28.62kgs |
2”Square | 36×36 | X2T3636 | 20 tonnes | 44 tonnes | 41.20kgs |
2”Square | 48×48 | X2T4848 | 25 tonnes | 63 tonnes | 73.25kgs |
2”Round | 30”Dia | X2TR30 | 15 tonnes | 30 tonnes | 22.47kgs |
2”Round | 36”Dia | X2TR36 | 16 tonnes | 32 tonnes | 32.33kgs |
1”Round | 48”Dia | X2TR48 | 19 tonnes | 45 tonnes | 57.51kgs |
|
|
|
|
|
|
2-2/1” Square | 24×24 | X2.5T2424 | 17.5 tonnes | 28 tonnes | 22.89kgs |
2-2/1” Square | 30×30 | X2.5T3030 | 19 tonnes | 39 tonnes | 35.76kgs |
2-2/1” Square | 36×36 | X2.5T3636 | 20 tonnes | 45 tonnes | 51.50kgs |
2-2/1” Square | 48×48 | X25T4848 | 24 tonnes | 60 tonnes | 91.56kgs |
2-2/1” Round | 30”Dia | X2.5TR30 | 15 tonnes | 29 tonnes | 28.09kgs |
2-2/1” Round | 36”Dia | X2.5TR36 | 15.3 tonnes | 33 tonnes | 40.41kgs |
2-2/1” Round | 48”Dia | X2.5TR48 | 19 tonnes | 46 tonnes | 71.88kgs |
|
|
|
|
|
|
3” Square | 24×24 | X3T2424 | 18tonnes | 29 tonnes | 27.47kgs |
3” Square | 30×30 | X3T3030 | 20 tonnes | 40 tonnes | 42.92kgs |
3” Square | 36×36 | X3T3636 | 22 tonnes | 47 tonnes | 61.80kgs |
3” Square | 48×48 | X3T4848 | 26 tonnes | 66 tonnes | 109.876kgs |
3” Round | 30”Dia | X3TR30 | 15 tonnes | 30 tonnes | 33.70kgs |
3” Round | 36”Dia | X3TR36 | 16 tonnes | 36 tonnes | 48.49kgs |
3” Round | 48”Dia | X3TR48 | 20 tonnes | 51 tonnes | 86.26kgs |
Applications
Our Types:
Variety of styles, support customized business, logo can be printed:

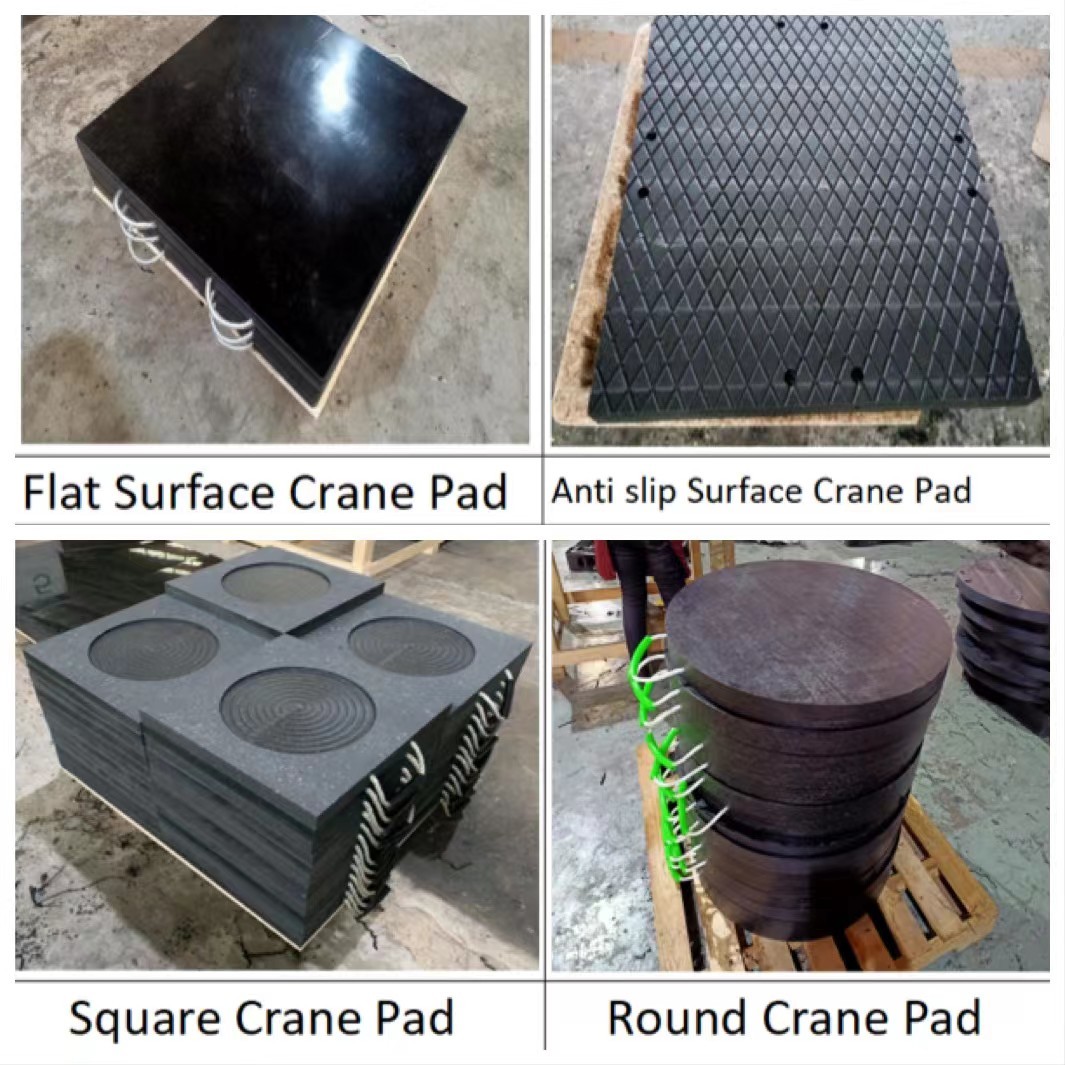

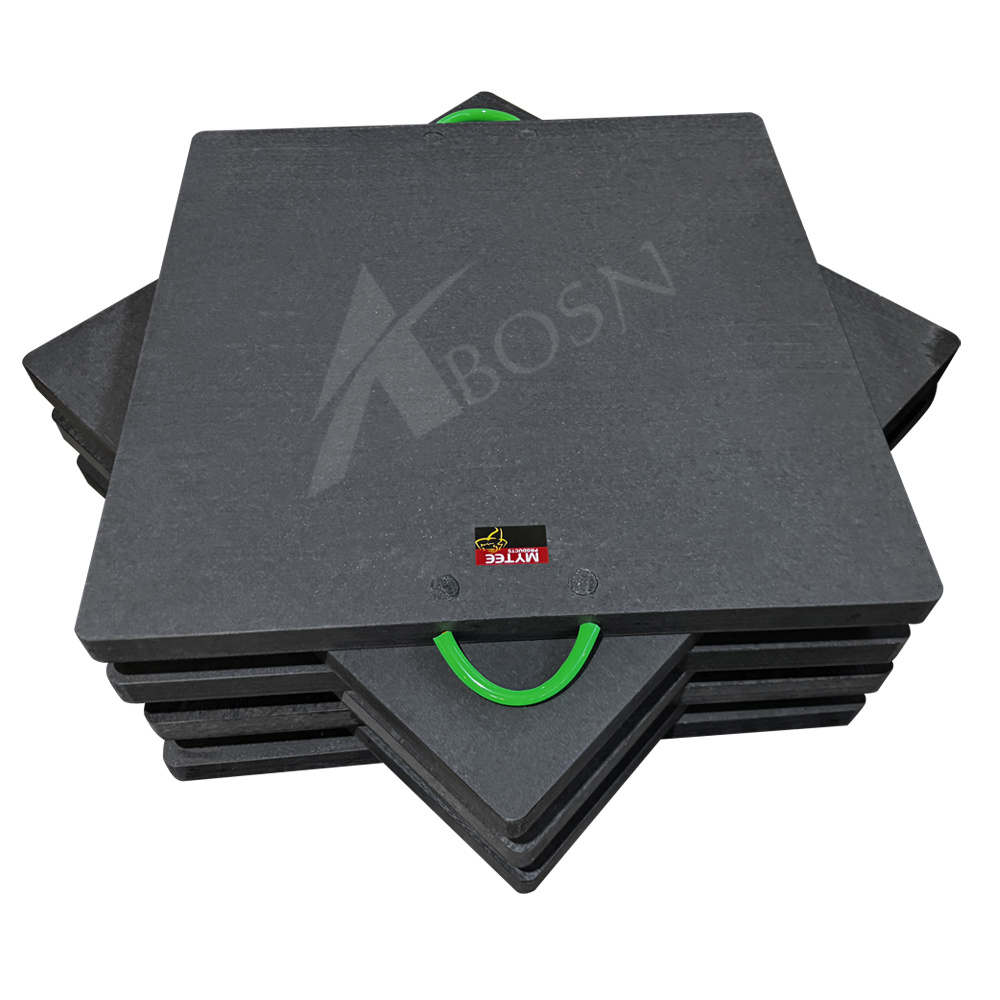

Square Crane Pad
Round Crane Pad

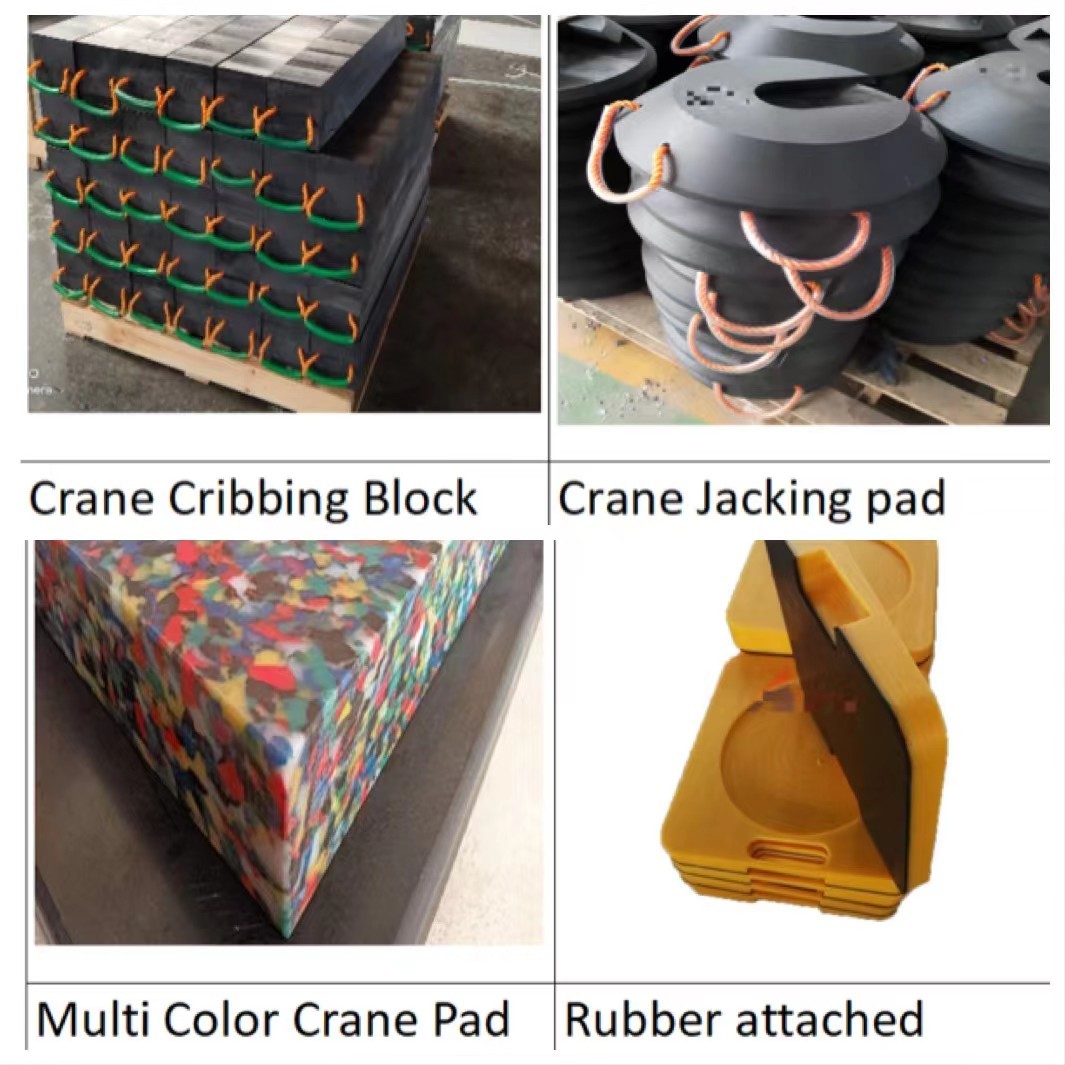

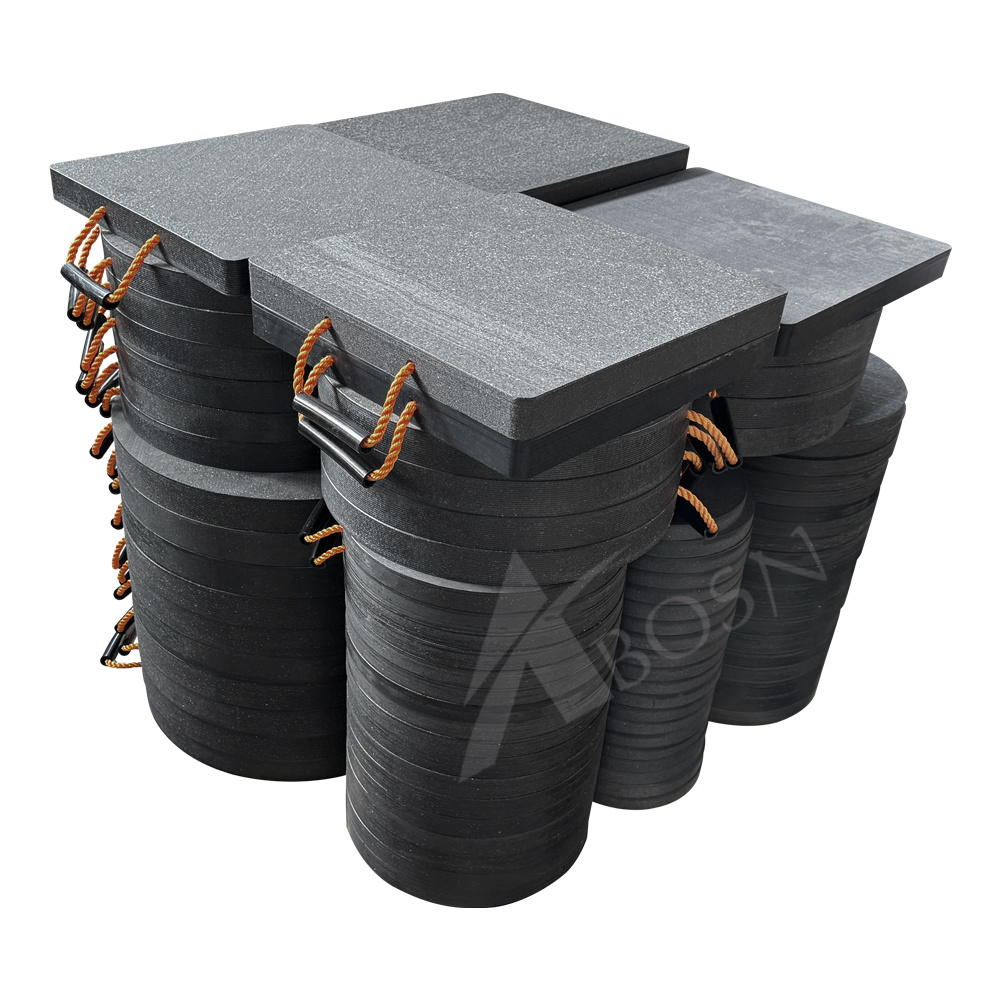

Crane Cribbing Block
Crane Jacking Block

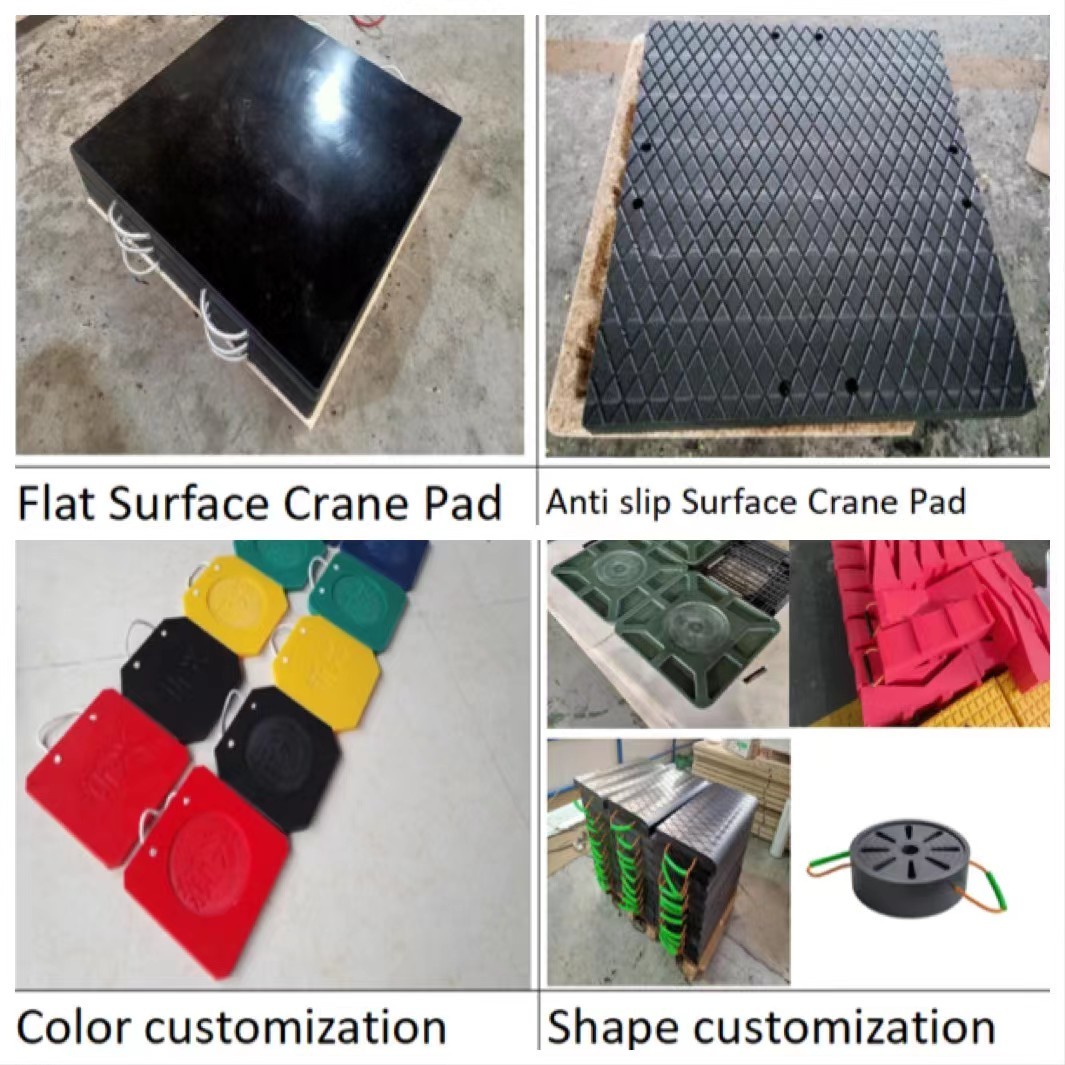

Flat Surface Crane Pad
Antislip Surface Crane Pad

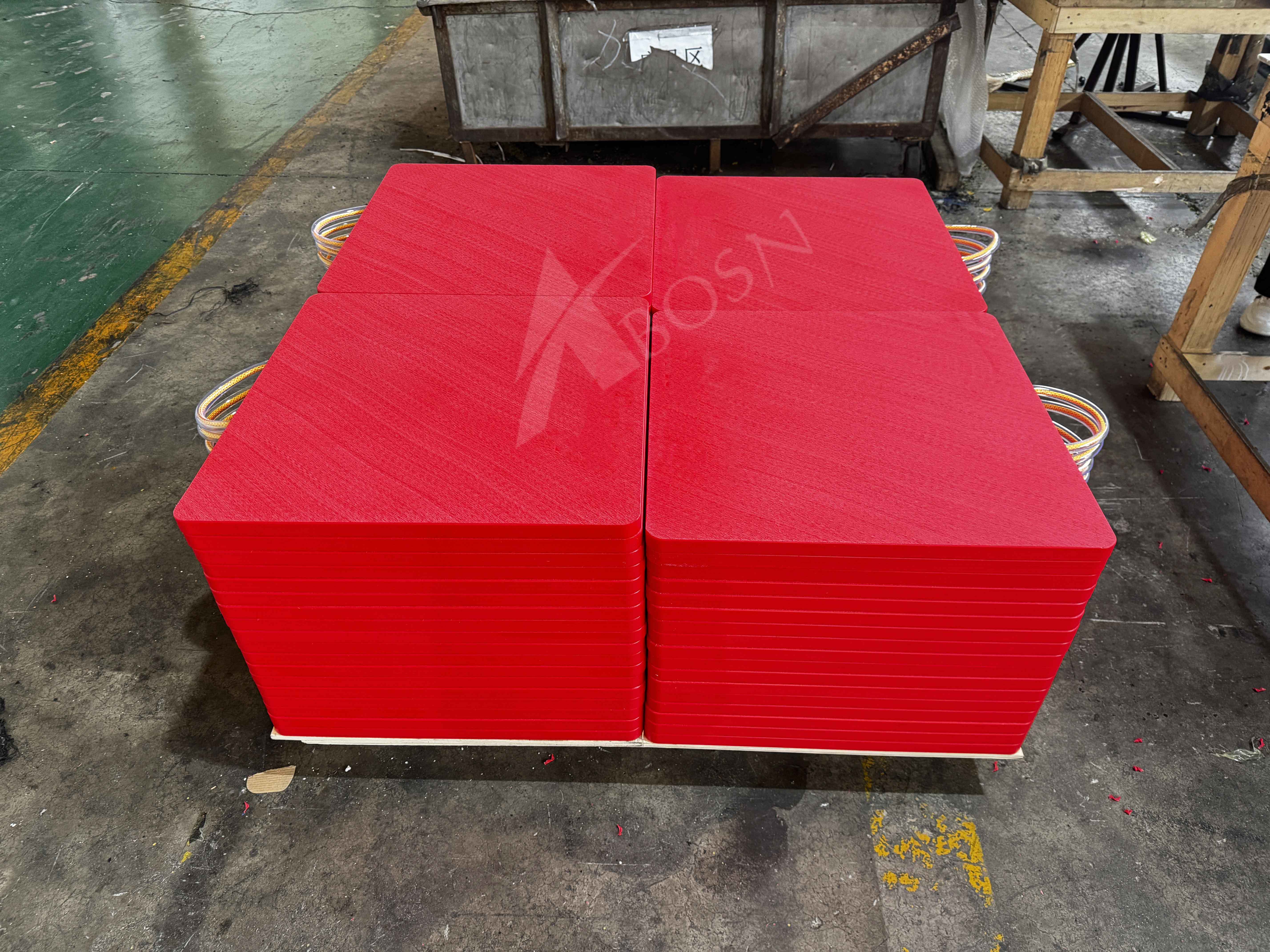

Multi Color Crane Pad
Rubber attached

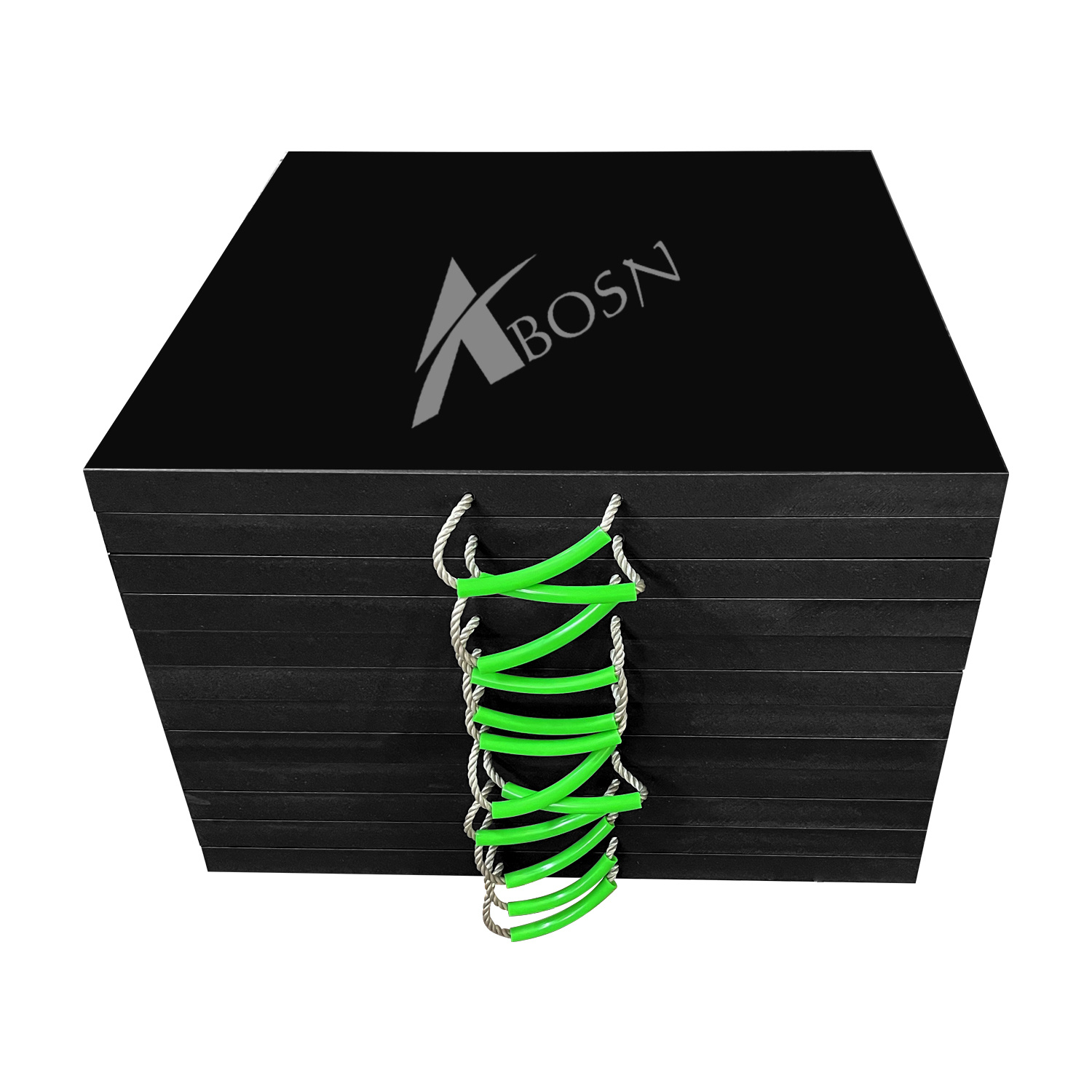

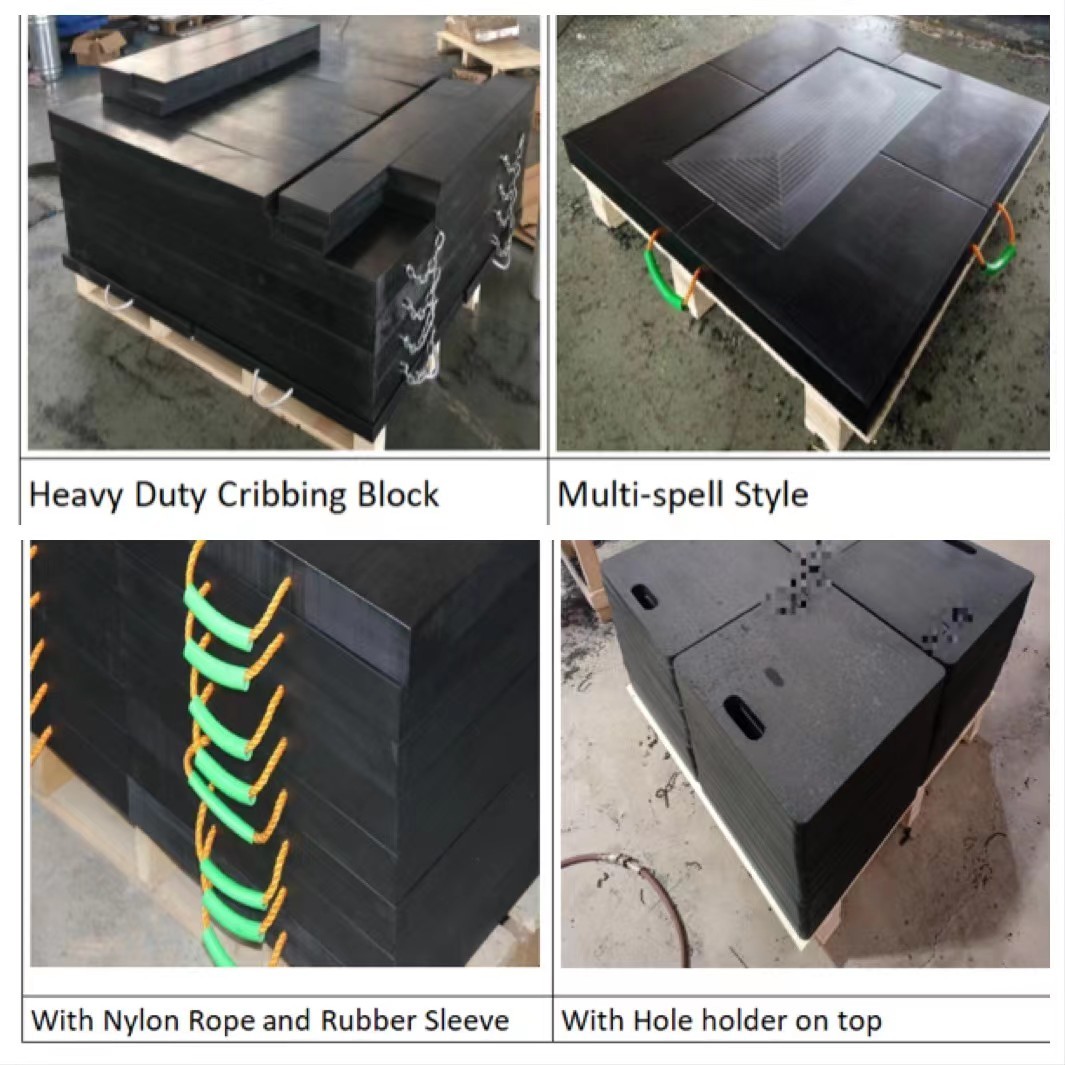

Heavy Duty Cribbing Block
Multi-spell Style
With Nylon Rope and Rubber Sleeve
With Hole holder on top
