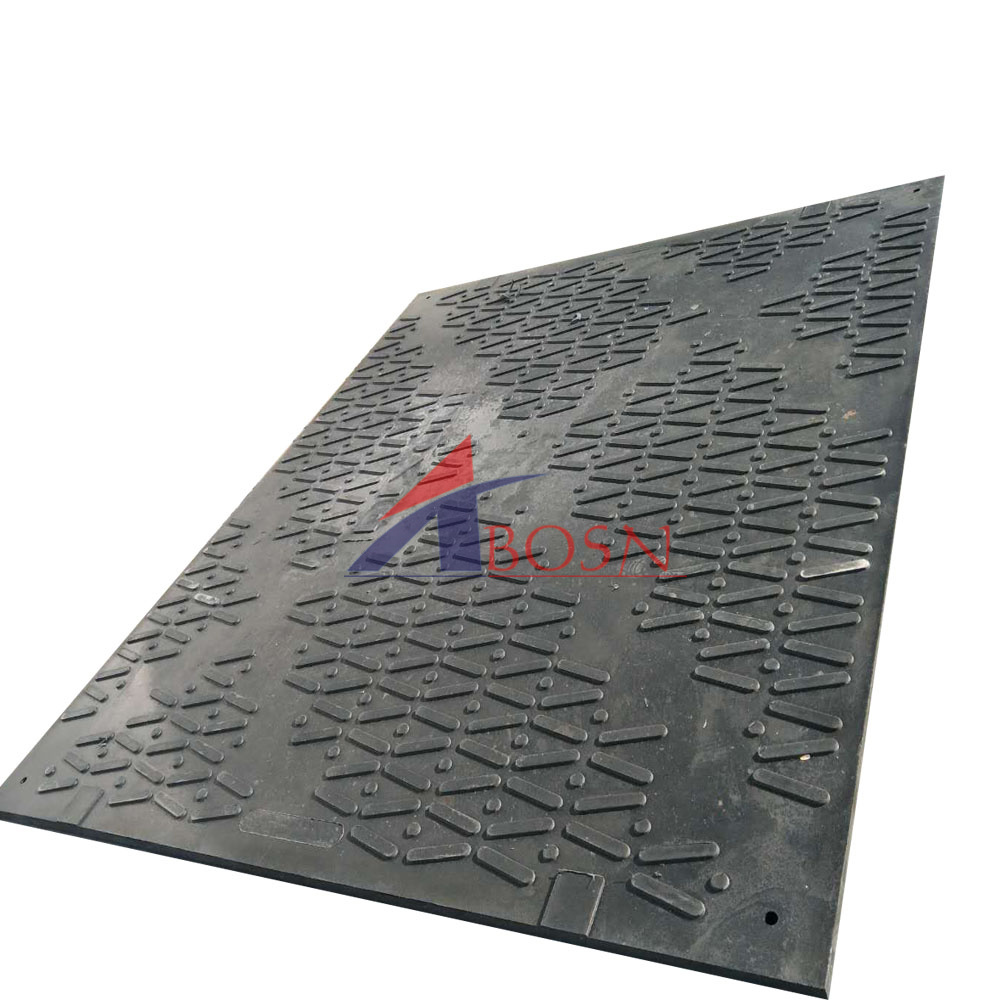

Abosn heavy duty uhmwpe material ground protection mat
heavy duty mat
uhmwpe mat
Product Details
Product description：
Abosn DuraMat offers a full range of market leading heavy duty composite ground protection mats for temporary access roadways, trackways, and working platforms delivering a safer work environment. Made from prime of Ultra High Molecular Weight (UHMW) Polyethylene, DuraMat Heavy Duty mats are hard wearing and robust.
DuraMat Heavy Duty ground protection matting consists of a range of construction methods to suit every construction, infrastructure, utilities, or events project. DuraMat Heavy Duty mats feature an optimized anti-slip traction pattern, molded into the top surface, that allows personnel, vehicles, and tracked equipment to work safely in any environment or terrain. With its strategically positioned hand holes DuraMat is easy to off-load from trucks or pallets and easy to move and deploy around the site by two workers. This makes it ideal for both short and long term projects.
DuraMat has a unique surface, comprising track pattern , which substantially improves the grip and forward motion of vehicles and plant and reduces sideway slippage, even in the most challenging weather or ground conditions. DuraMat is chemically inert, avoiding leaching of possible pollutants, and is non-conductive making it ideal for use in transmission projects. DuraMat heavy duty ground protection mats have a load bearing capacity of up to 600 psi*.
Application Area：
Our heavy duty DuraMat is suitable for the heaviest of loads up to 150 tons and can be used to create track ways and compound working areas for a wide range of industries including construction, oil drilling industry ,power transmission, renewable energy sites and infrastructure works.

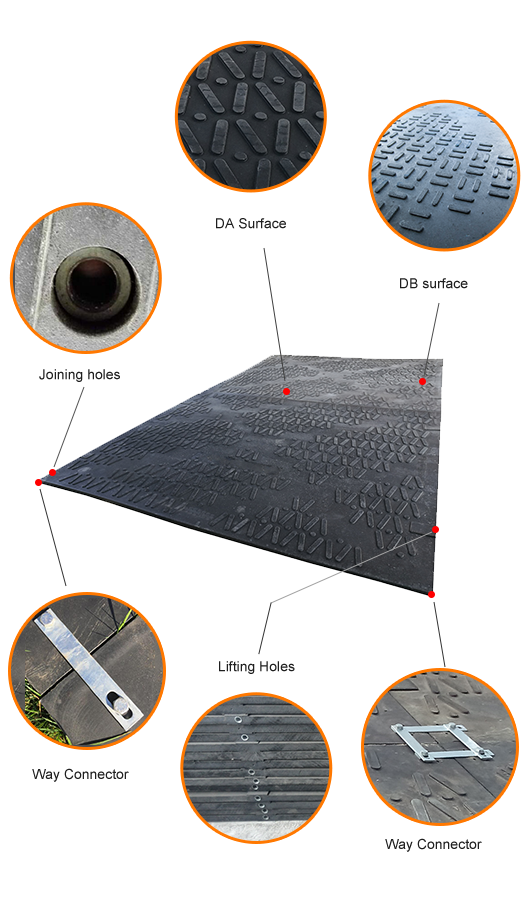

Features：
Color: standard black also can customized
1/7 the weight of steel mat Corrosion, chemical, wear and moisture resistant, more durable than wood
Non-slip surface
Work in sub-zero temperatures
Easy to transport and mount
Do not rot or splinter
Feature and Benifits：
|
Series No.
|
Size (mm) |
Thickness |
Unit weight (KGS 38mm) |
Effective Surface Area |
Material |
Color |
|
XP01 |
3000*2500 |
》15mm |
293 |
7.50 |
Composite Uhmwpe |
Any color |
|
XP02
|
4500*2000
|
》15mm |
351 |
9.00 |
Composite Uhmwpe |
Any color |
|
XP03 |
5900*2000
|
》15mm |
484 |
7.50 |
Composite Uhmwpe |
Any color |
Loading container and calculation：
|
Series No. |
Size (mm) |
Thickness |
Unit weight
(KGS) |
20ft Container |
40ft Container |
MOQ |
|
XP01 |
3000*2500 |
38mm |
293 |
、 |
78pcs |
50 |
|
XP02 |
4500*2000
|
38mm |
351 |
35pcs |
70pcs |
50 |
|
XP03 |
5900*2000
|
40mm |
484 |
40pcs |
53pcs |
50 |
Duramat material：
|
UHMWPE COMPOSITE GROUND MATS |
|||
|
Factor |
Composite UHMWPE |
Resistance to Ultra-violet |
Poor |
|
Tensile Strength(MPa) |
25 |
Radiation resistance |
Fair |
|
Notched Impacted Strength Kj/m2 |
No break |
Dielectric constant@1MHz |
2.3 |
|
Elongation at break (%) |
＞50% |
Dielectric strength(KV/ mm) |
28 |
|
Acids-concentrated |
Good--Fair |
Dissipation Factor@1MHz |
1-10*10 |
|
Acids-dilute |
Good |
Surface resistivity(Ohm/sq) |
10 |
|
Aromatic hydrocarbons |
Fair |
Volume resistivity(Ohm-cm) |
10 |
|
Greases and Oils |
Good-Fair |
Water absorption-over 24 hours (%)
|
＜0.01
|
|
Halogenated Hydrocarbons |
Fair-Poor |
Density(g/cm）
|
0.95-0.98
|
|
Halogens |
Fair-Poor |
Alkalis
|
Good
|
|
Ketones |
Good-Fair |
Alcohols
|
Good
|

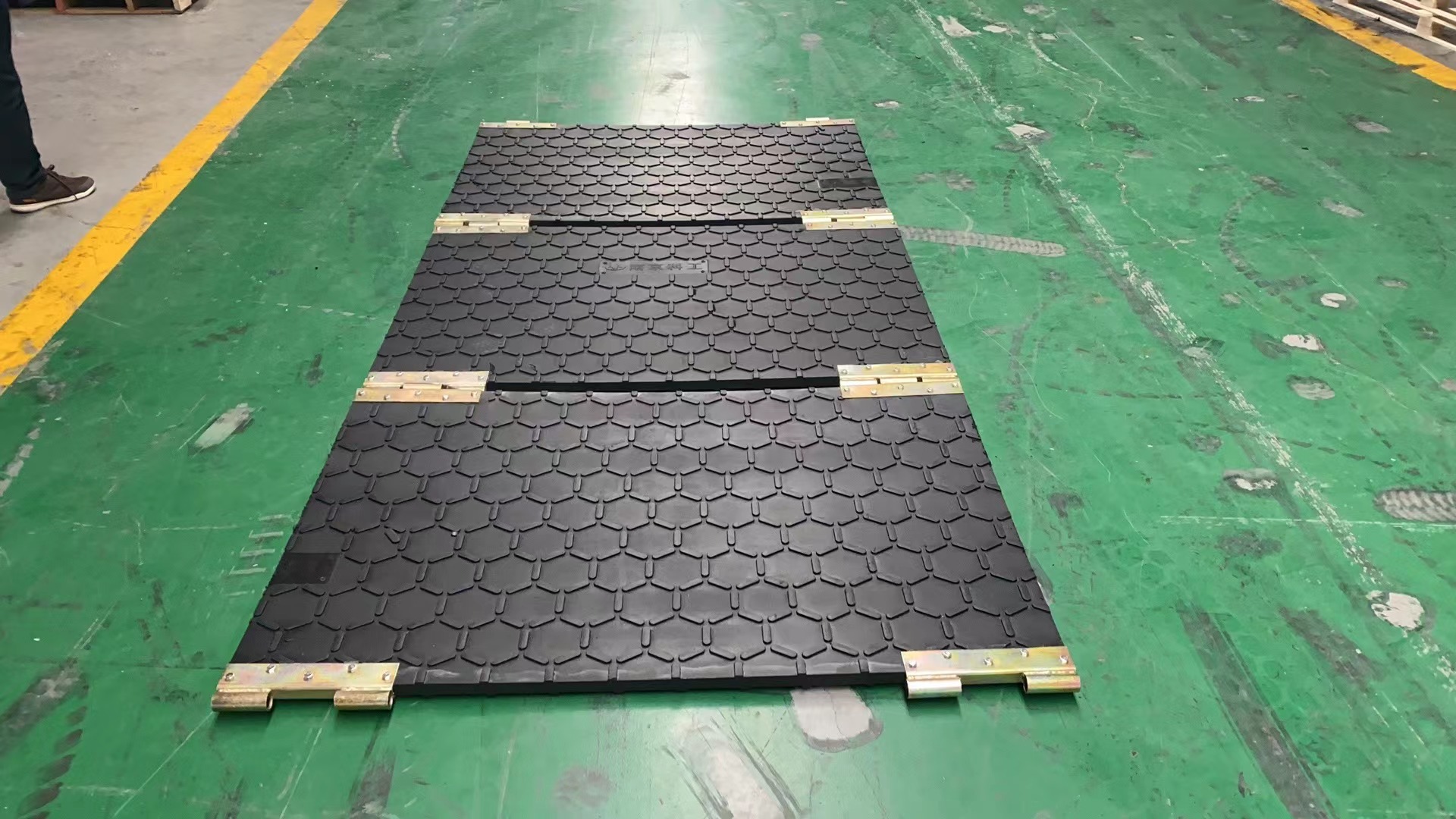

Connector：
Load capacity：
|
Thickness（mm） |
Load Capacity（ton） |
|
40 |
160 |
|
50 |
180 |
|
60 |
200 |
|
70 |
220 |
|
80 |
240 |
|
90 |
260 |
|
100 |
280 |
|
110 |
300 |
|
120 |
320 |
|
130 |
340 |
|
140 |
360 |
|
150 |
380 |
|
Thickness excludes height of texture |
|

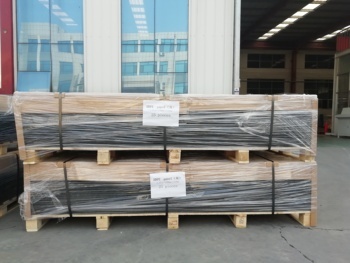

Packaging picture：
Certificates：
