Ultra High Molecular Weight Polyethylene Board

Ultra High Molecular Weight Polyethylene Board

Classification:

Products

Keywords:

uhmwpe

uhmwpe sheet

uhmwpe board

uhmwpe panel

uhmwpe price

uhmwpe supplier

uhmwpe manufacture

China uhmwpe

UHMWPE board is odorless. tasteless, and nontoxic. It embodies all the characteristics of high-density polyethylene (HDPE) with the added traits of being resistant to concentrated acids and alkalis, as well as numerous organic solvents.

CONTACNT US

Product Details

Product Description

Ultra-high-molecular-weight polyethylene (UHMWPE, UHM) board is a very tough material, with the highest impact strength of any thermoplastic presently made.

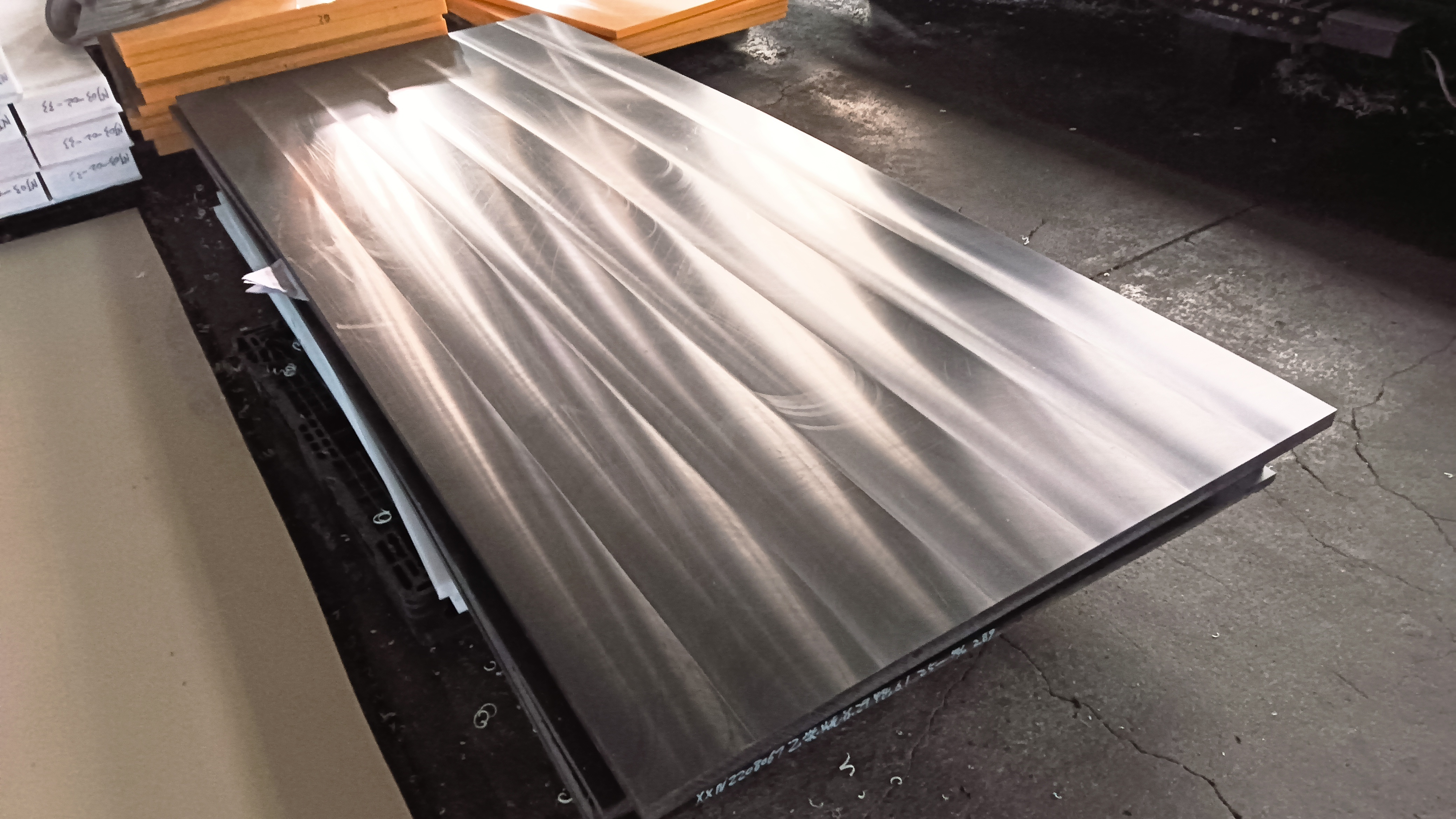

Two Milling Surface

Large cutterhead milling Surface	Small cutterhead milling Surface

Properties

	project	unit	Test Methods	index
General Physical Properties	molecular weight	X10	GB184-80ASTMD4020-81	50-1080
	density	g/cm3	GB1033-86	0.93-0.98
	Volatile matter (moisture)	％	GB2914-82	≤0.15
	Izod impact strength	KJ/m2	GB1843-80	not broken
	impact strength of beam	KJ/m2	GB1043-86	80-130
	Tensile breaking strength	Mpa	GB1040-79	25-40
	Tensile elongation at break	％	GB1040-79	50-600
thermal performance	Melting point	℃	ASTMD 2117	136
	Vicat softening point	℃	ASTMD 2117	80
	embrittlement temperature	℃	ASTMD1525	≤-70
	Linear expansion coefficient	10-5/℃	ASTMD 696	0.15
	Thermal deformation temperature 0.45Mpa	℃	ASTMD 648	110
Electric energy	volume resistivity		ASTMD 257	1017~ 1018
	Dielectric strength	KV/mm	ASTMD 149	50
	Dielectric constant	106Hz	ASTMD 150	2.30
	Dielectric loss tangent	106Hz	ASTMD 150	≤5×10-4

Advantages

UHMWE sheet is one kind of high performance engineering plastic sheet, it has the good functions which other plastic sheet do not have: Excellent abrasion resistance Low coefficient of friction No moisture absorption Corrosion resistant Excellent noise abatement Excellent impact strength Maintains key physical properties to -200°C

Size

Standard Size

5040X1330mm 4730×1230mm 3050X1220mm 6050X1820mm 3030X1550mm 4520X2000mm 3050X3050mm 2000X1000mm 6000X2000mm

Thickness

2-300mm

Other size can be made according to requirements
